On-shore Truck-mounted Nitrogen generation equipment

Time：2025-01-03 human browsing

Product Introduction

➣Membrane Separation Nitrogen generation technology is the use of different relative permeability of different gases in the membrane, and achieve the purpose of Nitrogen and oxygen separation.   ➣Compared with other generation Nitrogen method, Membrane separation Nitrogen equipment is smaller, lighter, more efficient, wide usage,more convenient operation & maintenance, above are the reason to usage inwide field.

➣Air compression system, Air handing system, Membrane separation Nitrogen system, Nitrogen supercharging system, central control system, box machine auxiliary system etc.

➣Adopt the world's advanced PRISM membrane separation of Nitrogen technology.

➣Equip with chassis of the north Mercedes-Benz and otherwell-known domestic manufacturers.

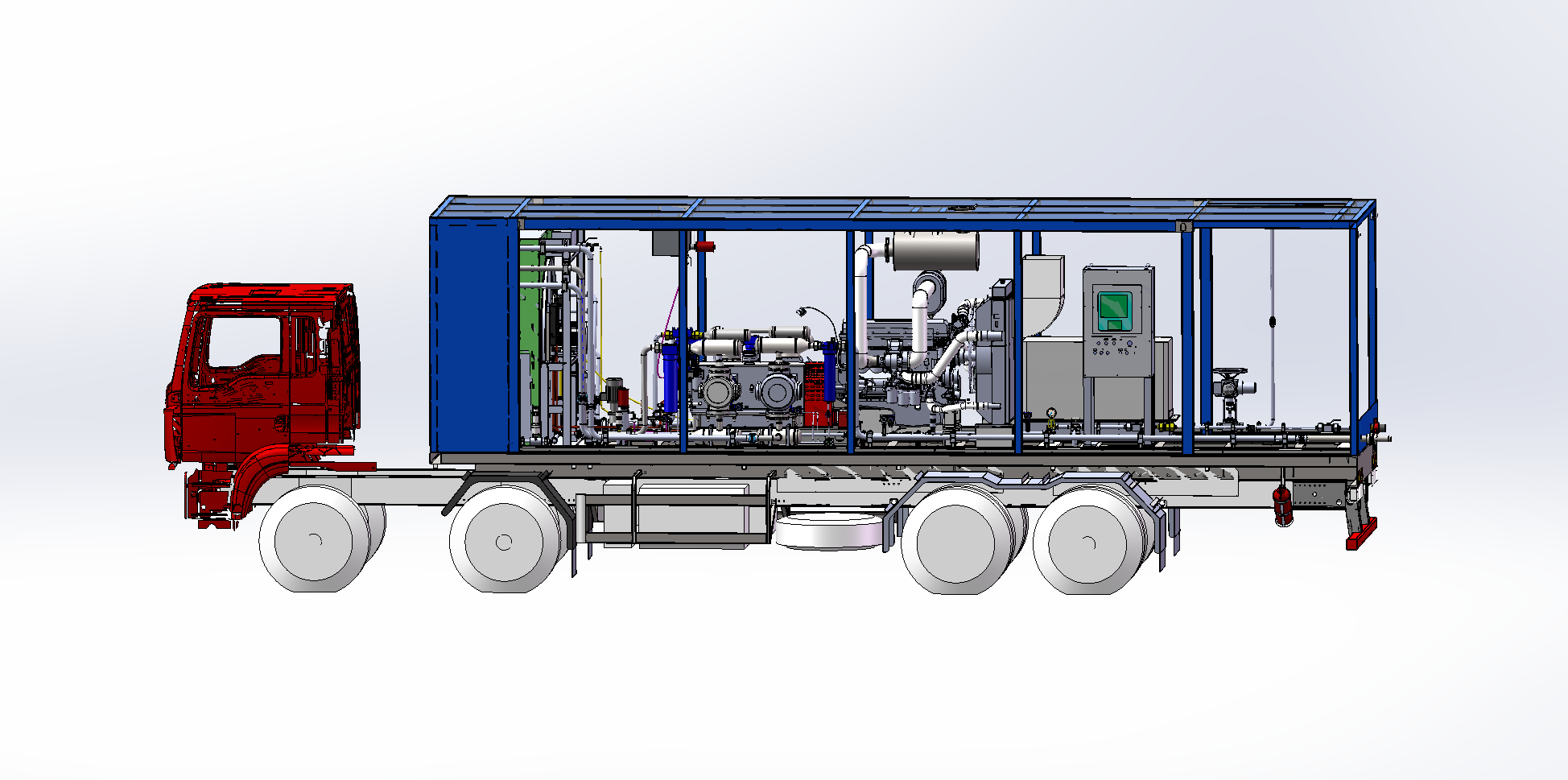

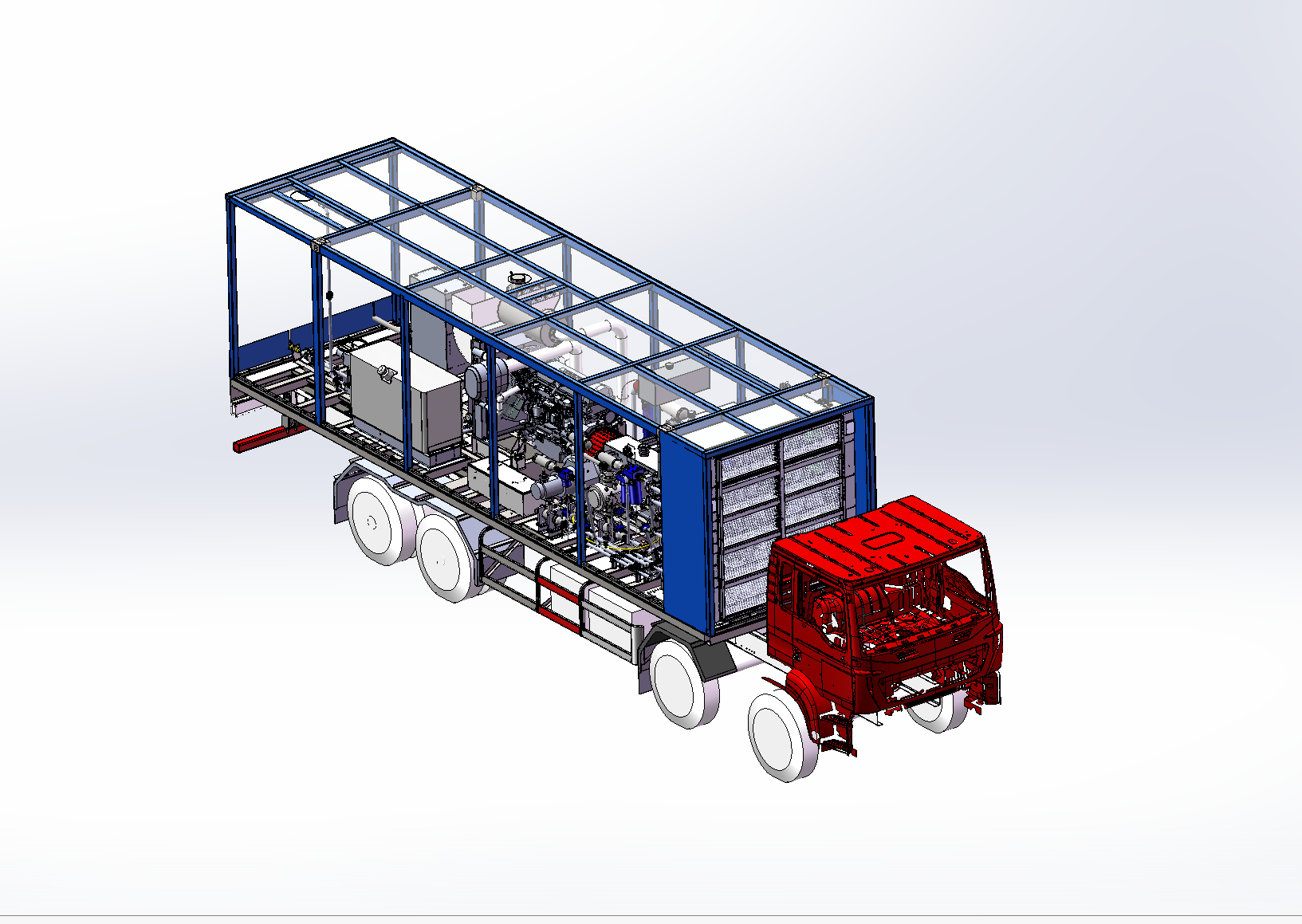

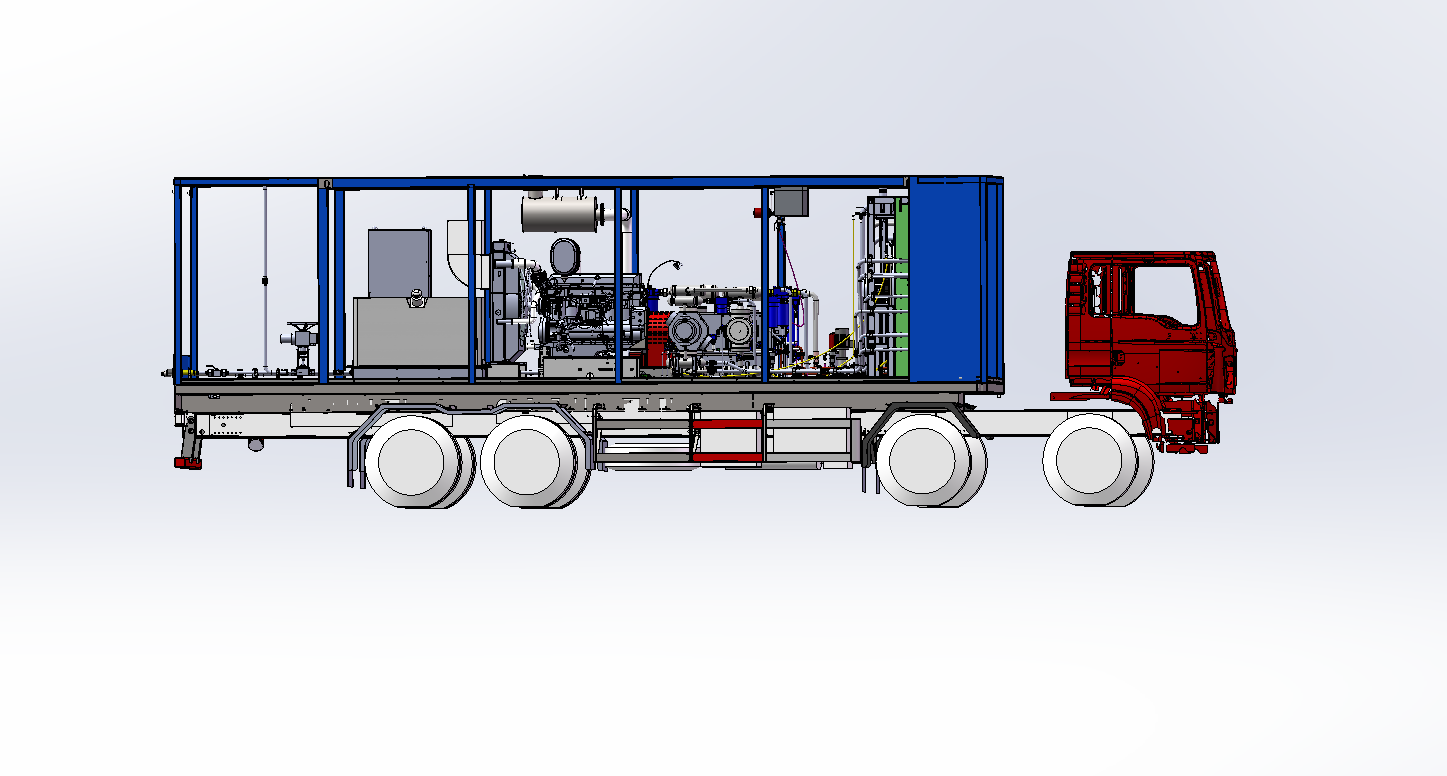

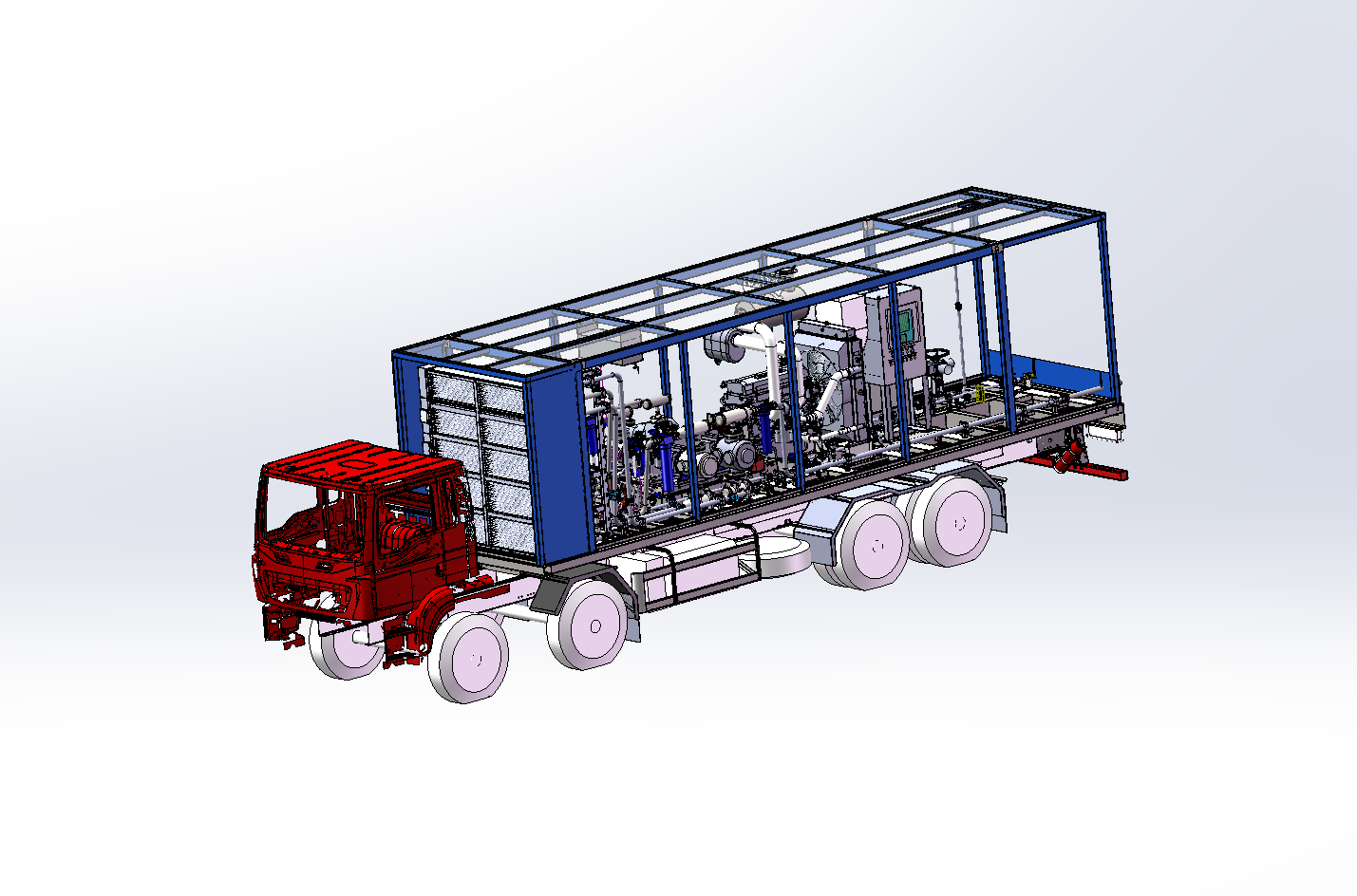

➣A full set of equipment are installed, fixed on the off-road chassis.

➣Meet the "GB1589-2004 road vehicle outside the contour size, shaft load and quality limits.

➣Comply with GB1589-2004 limits on overall dimensions, axle loads and mass of road vehicles.

➣The whole set of equipment has sufficient earthquake resistance and off-road performance.

➣Have the model announcement of the Ministry of industry and information technology to meet customer needs.

➣The control system has a high degree of integration, convenient operation and patrol inspection, and high safety performance, which meets the HSE requirements of the well pad.
